NYY YVV-R 0,6/1KV - Bakır İletkenli Yeraltı Kabloları

Tip	YVV-U, YVV-R (TSE), NYY (VDE), Cu/PVC/PVC (BS)
Standartlar	TS IEC 60502-1, VDE 0276

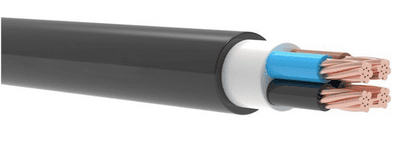

Yapısı	Bakır iletken, PVC izole, PVC Dolgu, PVC dış kılıf
Kullanıldığı Yerler	Şebeke aydınlatma ve güç kablosu olarak kullanılan bu kablo fazla mekanik zorlamaların olmadığı dahili, harici toprak altında, ve kablo kanalında kullanılır.
Teknik Veriler	Maks. çalışma sıcaklığı 70°C Maks. kısa devre sıcaklığı 160°C Minimum bükülme yarı çapı 12*D D: Kablo dış çapı (mm)

Nominal Kesit (mm²)	Dış Çap (mm)	Net Ağırlık (kg/km)	Makara Ölçüsü	20°C İletken Direnci (Ω/km)	Akım (Toprakta) A	Akım (Havada) A
1x4	7,5	90	80	4,61	56	45
1x6	8,0	110	80	3,08	70	58
1x10	9,5	160	80	1,83	95	78
1x16	10,0	220	90	1,15	123	108
1x25	11,5	320	90	0,727	160	140
1x35	13,0	425	100	0,524	190	175
1x50	14,0	550	100	0,387	225	210
1x70	16,0	760	110	0,268	272	270
1x95	18,0	1020	120	0,193	320	330
1x120	19,5	1280	120	0,153	375	385
1x150	22,0	1525	130	0,124	420	448
1x185	24,0	1950	140	0,0991	475	510
1x240	26,5	2450	150	0,0754	550	600
1x300	30,0	3175	160	0,0601	632	678
1x400	33,0	4050	180	0,0470	730	817
1x500	38,0	5150	210	0,0366	823	940
2x1.5	10,5	150	80	12,1	32	22
2x2.5	11,5	190	90	7,41	42	30
2x4	13,0	260	90	4,61	52	40
2x6	14,0	320	100	3,08	66	50
2x10	16,0	460	100	1,83	90	69
2x16	18,0	620	120	1,15	115	92
2x25	22,0	920	130	0,727	150	118
2x35	24,0	1160	130	0,524	180	147
2x50	27,0	1550	150	0,387	215	180
2x70	31,0	2100	160	0,268	264	224
2x95	35,0	2800	180	0,193	318	271
2x120	39,0	3450	210	0,153	360	314
2x150	43,0	4200	220	0,124	406	361
2x185	47,0	5200	230	0,0991	458	412
2x240	53,0	6800	210*	0,0754	537	484
3x1.5 re	11,0	160	90	12,1	27	19
3x2.5 re	12,0	215	90	7,41	36	25
3x4 re	14,0	310	90	4,61	47	34
3x6 re	15,0	380	100	3,08	59	43
3x10 rm	17,5	550	110	1,83	79	59
3x16 rm	20,0	780	120	1,15	102	79
3x25 rm	23,0	1150	130	0,727	133	100
3x35 rm	26,0	1500	140	0,524	159	125
3x50 rm	29,5	1960	160	0,387	188	153
3x70 rm	33,0	2700	180	0,268	232	195
3x95 rm	38,0	3650	210	0,193	280	238
3x120 rm	41,5	4500	210	0,153	318	275
3x150 rm	45,0	5450	230	0,124	359	320
3x185 rm	50,0	6900	200*	0,0991	406	364
3x240 rm	56,0	8700	220*	0,0754	473	430
3x300 rm	63,0	11250	230*	0,0601	535	510
3x400 rm	71,0	14300	210**	0,0470	613	595
3x16/10 rm	21,5	900	130	1,15	102	79
3x25/16 rm	24,5	1350	140	0,727	133	100
3x35/16 rm	26,5	1700	150	0,524	159	125
3x50/25 rm	31,0	2250	160	0,387	188	153
3x70/35 rm	34,5	3050	200	0,268	232	195
3x95/50 rm	40,0	4050	220	0,193	280	238
3x120/70 rm	43,0	5150	230	0,153	318	275
3x150/70 rm	47,5	6050	240	0,124	359	320
3x185/95 rm	52,5	7750	210*	0,0991	406	364
3x240/120 rm	59,0	9800	230*	0,0754	473	430
3x300/150 rm	66,0	12700	250*	0,0601	535	510
3x400/185 rm	74,0	16000	220**	0,0470	613	595
4x1.5 re	12,0	200	90	12,1	27	19
4x2.5 re	13,0	260	90	7,41	36	25
4x4 re	15,0	350	100	4,61	47	34
4x6 re	16,0	460	110	3,08	59	43
4x10 rm	19,0	680	120	1,83	79	59
4x16 rm	21,0	960	130	1,15	102	79
4x25 rm	25,5	1450	140	0,727	133	100
4x35 rm	28,5	1900	150	0,524	159	125
4x50 rm	32,5	2500	160	0,387	188	153
4x70 rm	36,5	3420	200	0,268	232	195
4x95 rm	42,0	4650	220	0,193	280	238
4x120 rm	46,0	5720	230	0,153	318	275
4x150 rm	51,0	7000	200*	0,124	359	320
4x185 rm	56,0	8800	210*	0,0991	406	364
4x240 rm	63,0	11200	230*	0,0754	473	430
4x300 rm	70,0	14200	230*	0,0601	535	510
4x400 rm	78,0	18000	210**	0,0470	613	595
5x4 re	16,0	420	110	4,61	47	34
5x6 re	17,5	540	120	3,08	59	43
5x10 rm	21,0	825	130	1,83	79	59
5x16 rm	23,5	1160	140	1,15	102	79
5x25 rm	28,0	1740	150	0,727	133	100
5x35 rm	31,5	2320	160	0,524	159	125
5x50 rm	36,0	3020	180	0,387	188	153
5x70 rm	40,5	4160	220	0,268	232	195
5x95 rm	47,0	5750	240*	0,193	280	238
5x120 rm	50,0	7400	200*	0,153	318	275
5x150 rm	55,0	9000	210*	0,124	359	320
5x185 rm	62,0	11500	220*	0,0991	406	364
5x240 rm	69,0	14500	200**	0,0754	473	430
