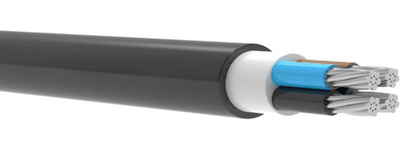

NAYY (ALVİNAL) YAVV-R 0,6/1KV - Alüminyum Yeraltı Kabloları

Tip	YAVV-R (TSE) / NAYY (VDE) / AL/PVC/PVC (BS)
Standartlar	TS IEC 60502-1, VDE 0276
Yapısı	Alüminyum iletken, PVC izole, PVC dolgu, PVC dış kılıf
Kullanıldığı Yerler	Toprak altı tesislerde ve sabit enerji kablolamalarında kullanılır
Teknik Veriler	Maks. iletken sıcaklığı: 70°C Kısa devre sıcaklığı: 160°C (≤300 mm²), 140°C (≥300 mm²) Minimum bükülme yarıçapı: Kablo çapının 15 katı

Nominal Kesit (mm²)	Dış Çap (mm)	Net Ağırlık (kg/km)	Makara Ölçüsü	20°C İletken Direnci (Ω/km)	Akım (Toprakta) A	Akım (Havada) A
1x16	10,0	130	90	1,910	75	80
1x25	12,0	180	90	1,200	125	87
1x35	13,0	220	100	0,868	151	131
1x50	14,0	290	100	0,641	179	160
1x70	16,0	360	110	0,443	218	202
1x95	18,0	460	120	0,320	261	249
1x120	20,0	580	120	0,253	297	291
1x150	22,0	710	130	0,206	332	333
1x185	24,0	870	140	0,164	376	384
1x240	27,0	1125	150	0,125	437	460
1x300	30,0	1350	160	0,100	494	530
1x400	33,0	1700	180	0,0778	572	642
1x500	38,0	2050	210	0,0605	649	744
2x10	16,0	345	100	3,080	-	56
2x16	19,0	450	120	1,910	-	67
2x25	22,0	630	130	1,200	-	91
2x35	24,0	770	130	0,868	-	113
2x50	28,0	1025	150	0,641	-	138
2x70	31,0	1320	160	0,443	-	174
2x95	35,0	1800	180	0,320	-	210
2x120	39,0	2150	210	0,253	-	244
2x150	43,0	2600	220	0,206	-	281
2x185	47,0	3250	230	0,164	-	320
2x240	53,0	4100	240	0,125	-	378
3x10	17,0	400	100	3,080	59	53
3x16	20,0	520	120	1,910	78	64
3x25	23,0	720	130	1,200	99	83
3x35	26,0	900	140	0,868	118	102
3x50	30,0	1200	160	0,641	142	124
3x70	33,0	1520	180	0,443	176	158
3x95	38,0	2000	210	0,320	211	190
3x120	42,0	2400	210	0,253	242	221
3x150	45,0	3100	230	0,206	270	252
3x185	50,0	3700	240	0,164	308	289
3x240	57,0	4700	220*	0,125	363	339
3x300	63,0	6000	230*	0,100	412	377
3x400	71,0	7750	240*	0,0778	475	444
3x16/10	21,0	580	120	1,910	78	64
3x25/16	25,0	800	140	1,200	99	83
3x35/16	27,0	950	150	0,868	118	102
3x50/25	32,0	1350	160	0,641	142	124
3x70/35	35,0	1700	200	0,443	176	158
3x95/50	40,0	2150	220	0,320	211	190
3x120/70	44,0	2750	230	0,253	242	221
3x150/70	48,0	3250	240	0,206	270	252
3x185/95	54,0	4100	210*	0,164	308	289
3x240/120	60,0	5150	230*	0,125	363	339
3x300/150	66,0	6250	250*	0,100	412	377
3x400/185	74,0	8250	260*	0,0778	475	444
4x10	20,0	475	120	3,080	59	53
4x16	22,0	595	120	1,910	78	64
4x25	26,0	900	140	1,200	99	83
4x35	29,0	1100	150	0,868	118	102
4x50	33,0	1520	160	0,641	142	124
4x70	37,0	1900	200	0,443	176	158
4x95	42,0	2500	220	0,320	211	190
4x120	46,0	3050	230	0,253	242	221
4x150	51,0	3900	240	0,206	270	252
4x185	56,0	4600	210*	0,164	308	289
4x240	64,0	5900	230*	0,125	363	339
4x300	71,0	7250	230*	0,100	412	377
4x400	79,0	9500	240*	0,0778	475	444
